Counters
The device's main properties are displayed in the table below.
The information is obtained via polling. If there are changes in a device's information, the data will be updated in the next polling cycle.
| Device Counters | |
|---|---|
| Total - Indicates the total value of the counters for the copier, printer, and fax functions. The Total counter provides the sum of all toner usage on this device. It is a cumulative total of monochrome and color toner usage (if applicable). |
Copy Black - Indicates the counter values for the copier function. |
| Copy Color Full | Copy Color Twin |
| Copy Color Mono | Printer Black |
| Printer Color Full | Printer Color Twin |
| Printer Color Mono | Economy Color Counter |
| Fax Black | Fax Color Mono |
| A2 | A3/DLT |
| Duplex | Send Color |
| Send Mono | Fax Send |
| Scanner Send Color - Indicates the counter value for the scanner send color function. |
Scanner Send Mono - Indicates the counter value for the scanner send B&W function. |
| Total Mono | Total Color |
| Coverage Color Pages - Coverage is the total toner usage (in units of 1%) per sheet of A4 page. For example, when an entire A4 sheet is filled with solid black, black toner coverage is 100%. |
Coverage B&W Pages |
| Color 1, 2, 3 - Indicates the counter values categorized in Low, Med, and High for coverage of color pages. The unit of the counter is side(s). The default thresholds for each coverage category are as follows: Color 1 (Low): Lower than 5 % Color 2 (Mid): 5% to 20 % Color 3 (High): 20 % or higher |
Active - Indicates the counter value of the total running time of the device. The unit of the counter is minute(s). |
| Idle - Indicates the counter value of the total inactive time of the device. The unit of the counter is minute(s). |
Pre-heat - Indicates the counter value of the time the device was in preheating mode. The unit of the counter is minute(s). |
| Sleep - Indicates the counter value of the time the device was in sleep mode. The unit of the counter is minute(s). |
OffMode - Indicates the counter value of the time the device was in off mode. The unit of the counter is minute(s). |

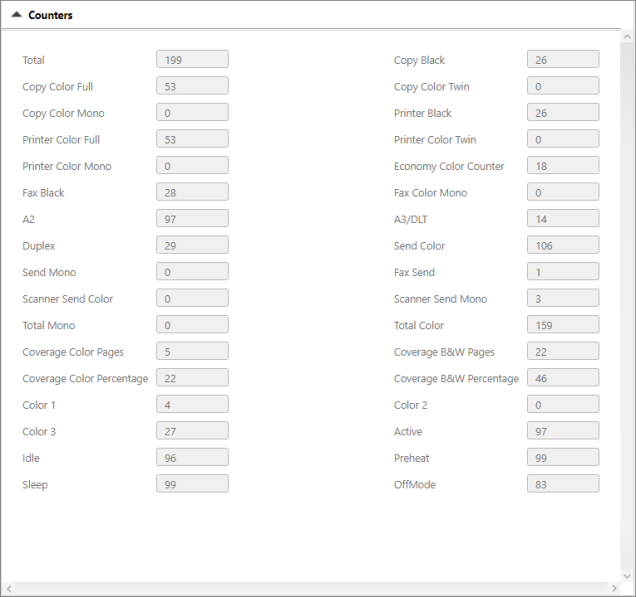

An example of device counters is displayed below:
If you want to see all device counter history, go to History.
